Features
  • Material
    Extruded porcelain tiles
  • Tile Thickness
    20 mm
  • Fixation Type
    Invisible fixation
  • Tile Preparation
    Factory-formed full-width edge groove
  • Fixing System
    Concealed stainless steel clips (316-grade, 1.5 mm) + aluminum substructure + EPDM gasket
  • Substructure Profiles
    L- and T-shaped vertical aluminum rails
  • Tile Orientation
    Vertical or horizontal
  • Tile Compatibility
    Factory pre-grooved extruded porcelain tiles
  • Minimum Joint Width
    5 mm
  • Special Feature
    Continuous vertical EPDM gasket for waterproofing and vibration dampening

Extruded Porcelain Clip System with EPDM

This invisible mechanical fixing system is specifically engineered for 20 mm extruded porcelain tiles with factory-integrated, full-width edge grooves. It uses concealed stainless steel clips, anchored to a vertical aluminum substructure, to achieve a seamless, hardware-free façade surface.A key feature of the system is the continuous EPDM gasket placed inside the vertical aluminum profiles. This element prevents water ingress through vertical joints, cushions the tile edges, and reduces vibration and acoustic transfer.The system supports both horizontal and vertical tile installation, ensuring long-term structural integrity, aesthetic consistency, and ease of maintenance for ventilated façade applications.

Download Catalog
Performance Characteristics
  • Berghe icon Designed for use with 20 mm extruded porcelain tiles
  • Berghe icon Factory-formed full-width groove allows for precise, concealed mechanical fixing
  • Berghe icon Stainless steel clips (316-grade, 1.5 mm) remain hidden once installed
  • Berghe icon Continuous EPDM gasket in vertical profiles improves joint sealing and impact resistance
  • Berghe icon Dry installation with no adhesives or mortars required
  • Berghe icon Flexible orientation: vertical or horizontal tile layouts supported
  • Berghe icon 5 mm joint spacing ensures clean lines and effective drainage
  • Berghe icon Modular approach supports on-site tile cutting while retaining groove integrity
  • Berghe icon Engineered for structural performance under wind load and thermal expansion
  • Berghe icon Individual tiles can be removed and replaced without affecting surrounding panels
  • Berghe icon Pre-grooved tiles minimize installation time and material waste
CLIP WITH EPDM
1 Extruded Porcelain Clip System with EPDM image 4 Recovered

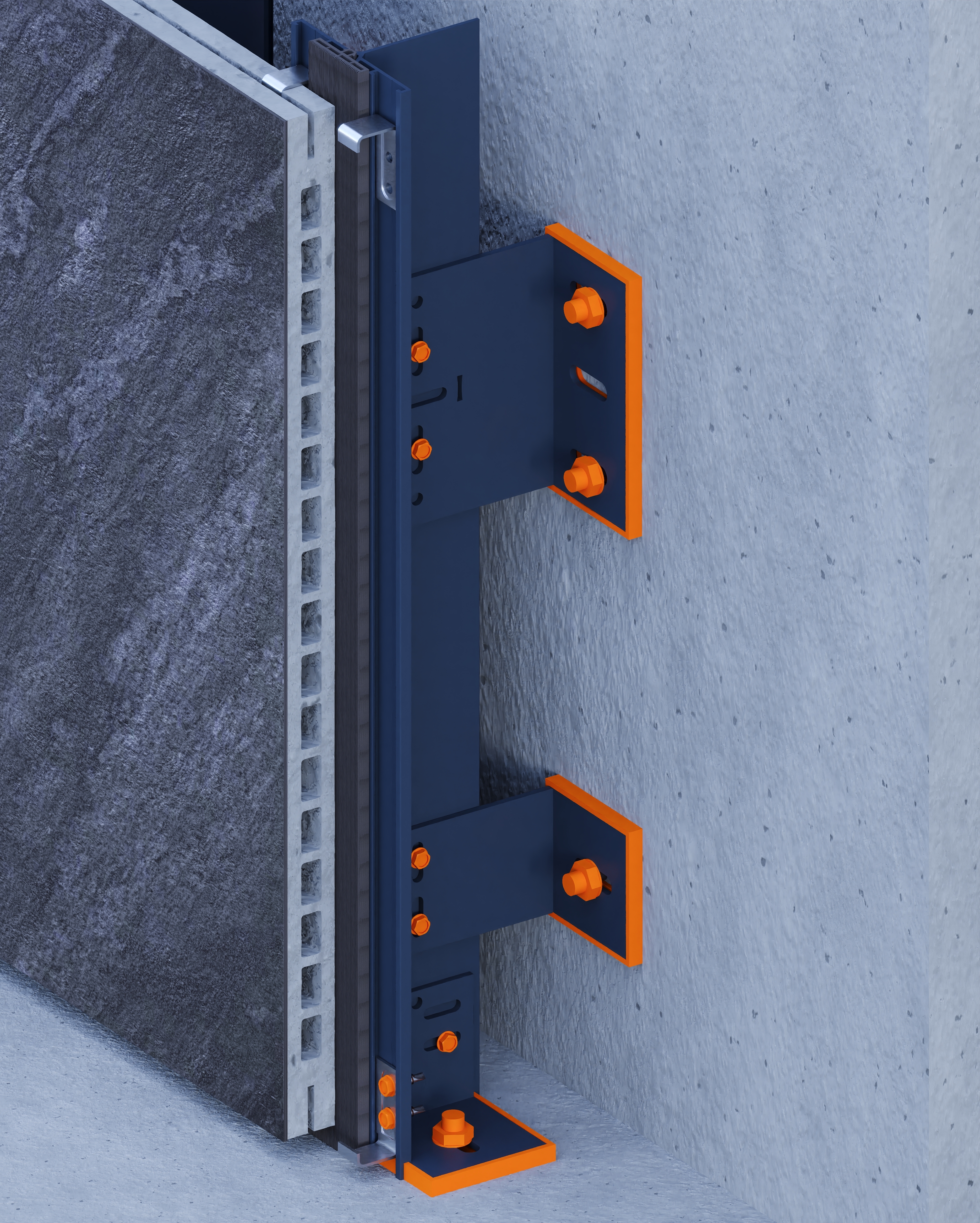

Component Breakdown
  • 1- Structural Support Wall: Concrete, CMU, or framed substrate (not supplied)
  • 2- Waterproofing Layer: Protects structural wall from moisture infiltration (not supplied)
  • 3- Thermal Insulation: Installed behind the substructure for enhanced energy efficiency (not supplied)
  • 4- Mechanical Anchors: Fix aluminum brackets securely to the substrate
  • 5- Thermal Break Pads: Placed between brackets and structure to reduce thermal bridging and galvanic reactions
  • 6- Stainless Steel Self-Drilling Screws: Used to fix brackets, clips, and aluminum profiles
  • 7- Aluminum Brackets (L-shaped): Define cavity depth and transfer structural loads
  • 8- Vertical Aluminum Profiles: L- and T-shaped carrier rails that house clips and EPDM gaskets
  • 9- EPDM Vertical Gasket: Inserted in vertical profile grooves to seal joints, cushion tiles, and reduce vibration
  • 10- Concealed Fixing Clips: Stainless steel 316, 1.5 mm thick; inserted into tile grooves for secure, invisible fixing
  • 11- Extruded Porcelain Tiles: 20 mm thick tiles with factory-integrated full-width edge grooves
