System Highlights

Material
Porcelain tiles and slabs
Tile/Slab Thickness
6 - 9 mm
Fixation Type
Visible fixation
Tile Preparation
No edge groove required
Fixing System
Stainless steel clips + aluminum substructure
Substructure Profiles
L- and T-shaped vertical aluminum profiles
Tile Orientation
Vertical or horizontal
Panel Compatibility
Standard sizes or custom-cut on-site to match architectural layout
Recommended Joint Width
5 mm
Clip Finish Options
Visible tabs can be coated in RAL colors

Visible Clamp System

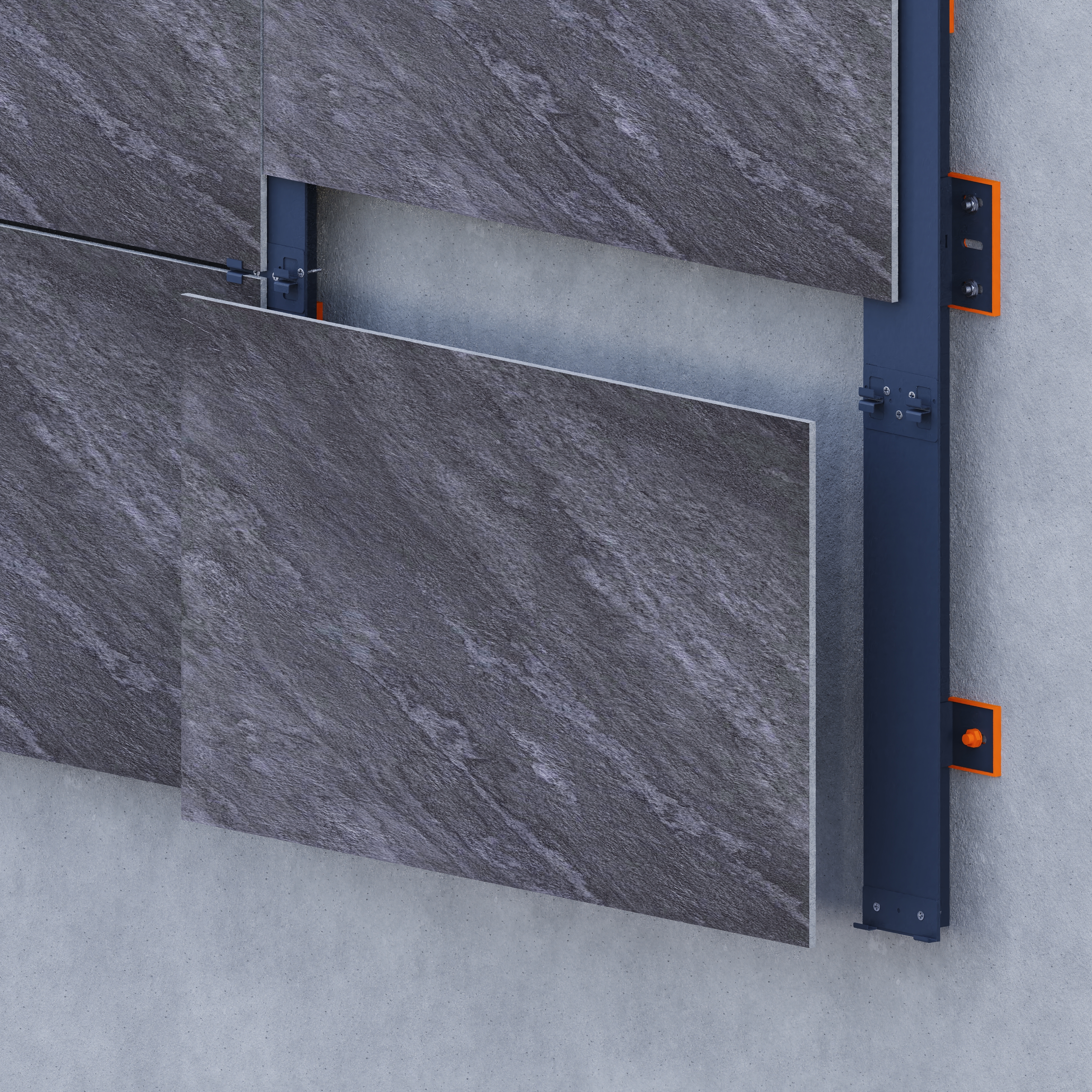

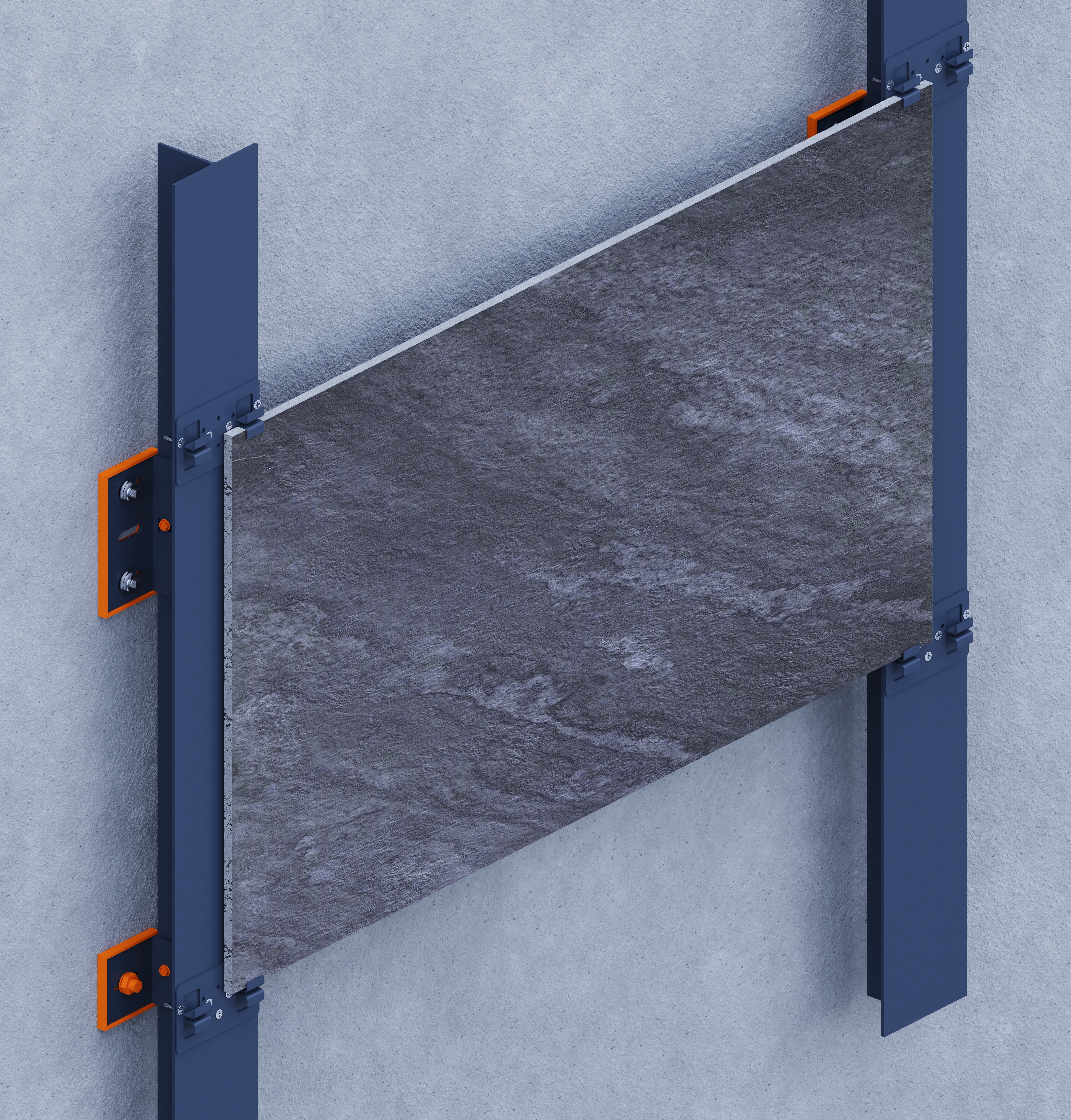

This mechanical fixing system offers a fast, adhesive-free solution for ventilated façades using 6–9 mm porcelain tiles and slabs. Stainless steel clips anchor panels to vertical aluminum profiles, creating a ventilated cavity behind the cladding.Partially visible tabs can be finished in RAL colors to match the surface. The system supports vertical or horizontal layouts, allows on-site adjustments, and enables easy replacement of individual tiles. Compatible with standard or custom-cut panels, it’s ideal for commercial, residential, and public façades requiring flexibility and speed of installation.

Download Catalog

Performance Characteristics

Compatible with both tiles and large-format slabs
Supports panel thicknesses from 6 mm to 20 mm
Dry, mechanical installation—no adhesives or setting time required
No need for pre-grooving of tiles or slabs
Clips allow color-matching via RAL coating for minimal visual impact
Easy installation, adjustment, and replacement of individual panels
Uniform 5 mm joints for alignment and drainage
Designed to accommodate thermal expansion and structural movement
Suitable for concrete, CMU, or framed substrates with proper anchors
System meets international standards for ventilated façade performance

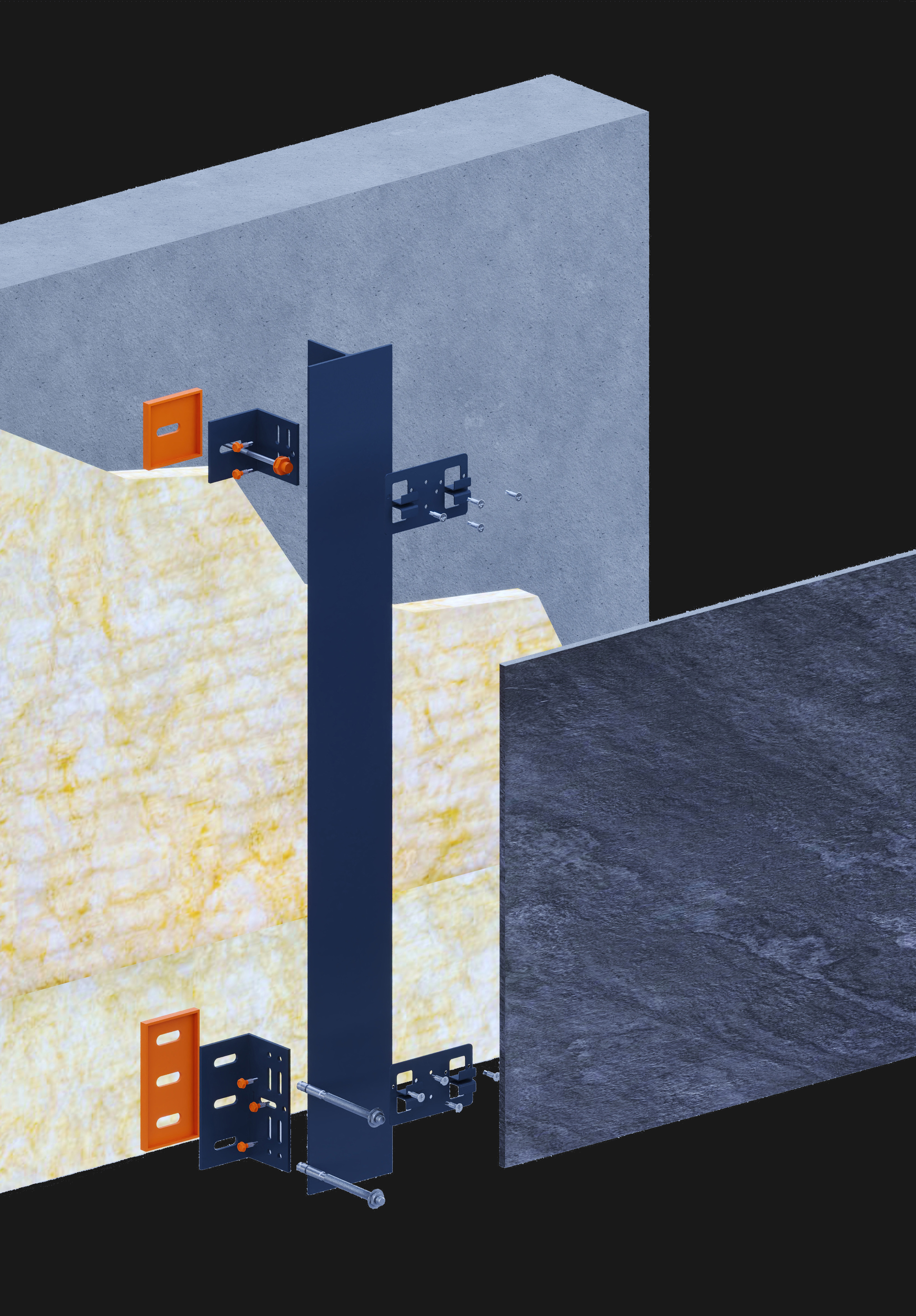

Component Breakdown

1- Concrete or Framed Support Wall: Structural substrate for anchoring the façade system (not supplied)
2- Waterproofing Layer: Protects structural wall against moisture intrusion (not supplied)
3- Thermal Insulation: Improves energy efficiency and reduces heat transfer (not supplied)
4- Anchors for Substrate: Mechanical expansion anchors suitable for concrete, masonry, or stud walls
5- Thermal Break Pads: Installed between brackets and wall to prevent thermal bridging and galvanic reactions
6- Stainless Steel Self-Drilling Screws: Used to secure clips and aluminum profiles without pre-drilling
7- L-Shaped Aluminum Spacers (Secondary): Used for cavity depth adjustments and alignment
8- T-Shaped Vertical Aluminum Profiles: Primary support elements that receive mechanical clips
9- Visible Fixing Clips: Stainless steel; hold the panel edge and can be coated in RAL colors
10- Porcelain Panels (Tiles or Slabs): High-strength porcelain available in various sizes and thicknesses
